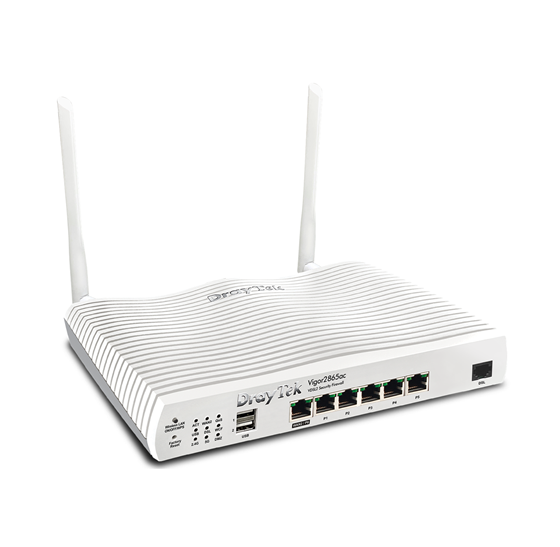

DRAYTEK VIGOR 2865ac ANNEX A

Vigor2865 LTE series VDSL2 (Super Vectoring)/ ADSL2 + with embedded 3G / 4G / LTE modem, apart from DSL connectivity, GSM/LTE connectivity with SIM card. Up to 4 Internet connections can be configured in the Vigor2862 LTE series to provide high network availability. LTE WAN supports download speeds up to 300 Mbps and works with all 4G and 3G networks worldwide.

Also, Vigor2865LTE series feature one port which can be used for any type of connection adding another connection. USB modem 3G / 4G / LTE can be also connected to the USB ports of the routers and provide Internet connection in case fixed lines are not available.

Vigor2865ac with the embedded Dual-band 4x4 wave2 802.11ac protocol Wi-Fi supports bandwidth limit up to 1733 Mbps + 800 Mbps.

Vigor2865ac supports protocol 802.1Q for tag-based VLAN and port-based VLAN, while it supports up to 8 IP subnets with different IP addresses from each VLAN while IP subnets 1 to 3 support up to 1022 IP addresses.

In addition, Vigor2865ac features Stateful Packet Inspection (SPI) Firewall and flexible filtering rules. With the annual subscription to Cyren's Web Content Filtering service, websites are filtered by category and restrictions can be set to ban entire website categories (such as social networking sites, gaming etc) without having to block each site separately. A 30-day trial is available free of charge with each router.

Vigor2865ac can act as the central management console for other Vigor devices on the network, including VigorAPs and VigorSwitches, and can manage up to 20 Access Points (VigorAPs) and up to 10 VigorSwitches.
