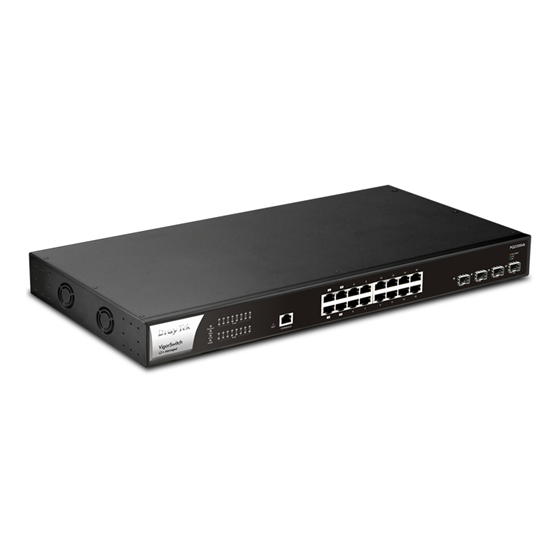

VigorSwitch PQ2200xb is a Layer 2 Gigabit PoE Switch with 20 ports, specially designed to ensure a secure and stable network in small and medium enterprises.
The hardware interface includes 16 x 10/100/1000/2500Mbps Gigabit Ethernet RJ-45 ports and 4 x 1000Mbps/10Gbps SFP+ Combo, with the 4 Gigabit ports being PoE/PoE++ (up to 90W per port) and 12 ports being PoE+ (30W per port) with 400 Watt PoE power budget. Supporting advanced Layer 3 features, DHCP Server, and VLAN Routing, VigorSwitch PQ2200xb improves network efficiency and helps your LAN network to work continuously even when the gateway is offline, which is ideal to be placed as the core switch in SME/SMB.
It supports up to 256 VLANs based on 802.1qtags, MAC addresses, as well as Link Aggregation up to 8 groups of 8 port members, allowing both the creation of a group and its connection to other switches or servers for higher speeds and a greater number of connections. It has security features to avoid network overload and IP conflicts (Preventions & Detection), but also QoS with Voice VLAN and Surveillance VLAN for automatic detection of call and video traffic with optimal distribution. By creating subnets in different workgroups, branches and departments of employees or visitors, according to their requirements, they ensure a stable, reliable and flexible corporate network.
In addition, VigorSwitch PQ2200xb supports the ONVIF protocol with live video streaming from a camera and camera management through the Switch's Web Interface (GUI). Like all DrayTek switches and access points, it is manageable through the central router's web interface and VigorACS central management software, through which the network administrator can view, configure and make massive changes to all connected DrayTek devices.
