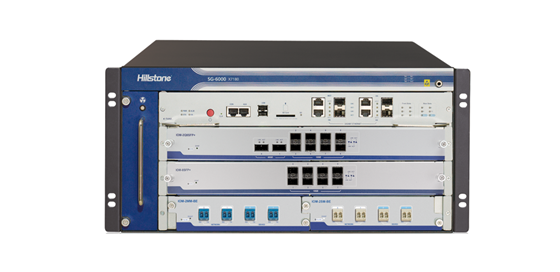

HILLSTONE SG-6000-X7180

SKU: SG-6000-X7180
Manufacturer: HILLSTONE NETWORKS
Modular Data Center Firewall with 680 Gbps FW Throughput, 90 Gbps IPSec Throughput, 20000 IPSec Tunnel, 500 Gbps IMIX Throughput, 240 Million Concurrent Sessions, 4.8 Million New Sessions/s, 100 Gbps IPS Throughput, 128/20000 SSL VPN Users

The Hillstone X7180 Data Center Firewall offers outstanding performance, reliability, and scalability, for high-speed service providers, large enterprises and carrier networks. It provides flexible firewall security for multi-tenant cloud-based Security-as-a-Service environments. The X7180 platform is based on Hillstone’s Elastic Security Architecture (ESA), which offers highly scalable virtual firewalls, exceptional firewall throughput, massive concurrent sessions and very high new sessions per second. The X7180 also supports Deep Packet Inspection (DPI), next generation application control and Quality of Service (QoS). The system delivers exceptional performance in a small form factor with low power requirements.

The Hillstone X7180 Data Center Firewall offers outstanding performance, reliability, and scalability, for high-speed service providers, large enterprises and carrier networks. It provides flexible firewall security for multi-tenant cloud-based Security-as-a-Service environments. The X7180 platform is based on Hillstone’s Elastic Security Architecture (ESA), which offers highly scalable virtual firewalls, exceptional firewall throughput, massive concurrent sessions and very high new sessions per second. The X7180 also supports Deep Packet Inspection (DPI), next generation application control and Quality of Service (QoS). The system delivers exceptional performance in a small form factor with low power requirements.

Products specifications
FW Throughput 680 Gbps
IPSec Throughput 90 Gbps
IPSec Tunnel (max) 20000
IMIX Throughput 500 Gbps
Max Concurrent Sessions 240 Million
New Sessions/Sec 4.8 Million
IPS Throughput 100 Gbps
SSL VPN Users (Default/Max) 128 / 20000
Management I/O 1 x Console Port, 1 x AUX port
Fixed I/O ports 4 x GE Combo slot (1 x M GT +3 x HA)
Available slots for Expansion Modules 10 x Generic Slot, 2 x System Control Module Slot, 1 x SD card slot, 2 x USB 2.0 port
Expansion modules SCM-100, SSM-100, SSM-200, QSM-100, QSM-200, IOM-16SFP-100, IOM- 2MM-BE, IOM-2SM-BE, IOM-2Q8SFP+
Max Power Consumption 2+ 2 redundant, Max.1300W ; 3+1 redundant, Max.1950W
Power Supply AC 100-240 V (50/60H z), DC -40 ~ -72V
Products specifications
FW Throughput 680 Gbps
IPSec Throughput 90 Gbps
IPSec Tunnel (max) 20000
IMIX Throughput 500 Gbps
Max Concurrent Sessions 240 Million
New Sessions/Sec 4.8 Million
IPS Throughput 100 Gbps
SSL VPN Users (Default/Max) 128 / 20000
Management I/O 1 x Console Port, 1 x AUX port
Fixed I/O ports 4 x GE Combo slot (1 x M GT +3 x HA)
Available slots for Expansion Modules 10 x Generic Slot, 2 x System Control Module Slot, 1 x SD card slot, 2 x USB 2.0 port
Expansion modules SCM-100, SSM-100, SSM-200, QSM-100, QSM-200, IOM-16SFP-100, IOM- 2MM-BE, IOM-2SM-BE, IOM-2Q8SFP+
Max Power Consumption 2+ 2 redundant, Max.1300W ; 3+1 redundant, Max.1950W
Power Supply AC 100-240 V (50/60H z), DC -40 ~ -72V
Cross Selling

HILLSTONE IOM-16SFP-100

16-port Gigabyte SFP module για το μοντέλο Hillstone X7180 (no optical transceiver)

HILLSTONE IOM-2MM-BE

Multi-mode Bypass module για το μοντέλο Hillstone X7180

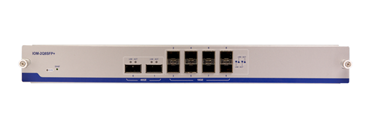

HILLSTONE IOM-2Q8SFP+

2Q8SFP+ module για το μοντέλο Hillstone X7180 (no optical transceiver)

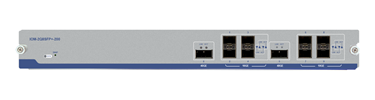

HILLSTONE IOM-2Q8SFP+-200

2Q8SFP+ module 200 για το μοντέλο Hillstone X7180 (no optical transceiver)

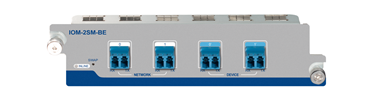

HILLSTONE IOM-2SM-BE

Single-mode Bypass module για το μοντέλο Hillstone X7180

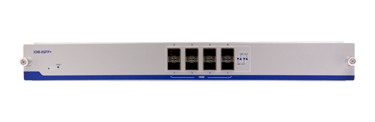

HILLSTONE IOM-8SFP+

8SFP+10Gigabyte module για το μοντέλο Hillstone X7180 (no optical transceiver)

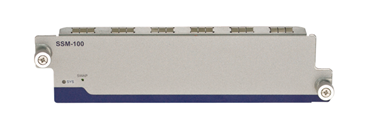

HILLSTONE SSM-100

Security Service module για το μοντέλο Hillstone X7180

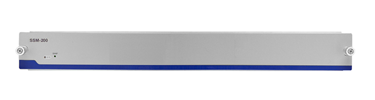

HILLSTONE SSM-200

Security Service Module 200 για το μοντέλο Hillstone X7180

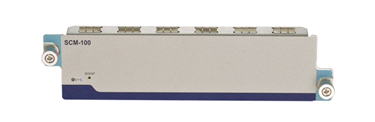

HILLSTONE SCM-100

System Control Module για το μοντέλο Hillstone X7180. Κάθε Data Center firewall X7180 υποστηρίζει έως 2 SCMs.

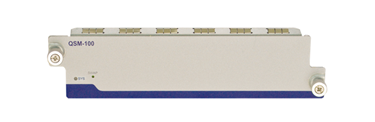

HILLSTONE QSM-100

QoS Service Module για το μοντέλο Hillstone X7180

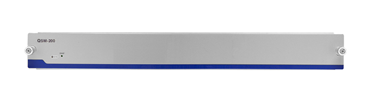

HILLSTONE QSM-200
